This high-speed fully automatic vertical packing machine is designed for efficient forming, filling, and sealing of various bag types.
It integrates film unwinding, bag forming, precise weighing/filling, date coding, sealing, and cutting in one continuous process.Ideal for packaging powders, granules, snacks, grains, and other free-flowing products.Widely used in food, chemical, pharmaceutical, and agricultural industries.
Features
PLC control with touchscreen interface,
stainless steel 304 contact parts,
high packaging accuracy.
Key advantages:
compact design,
easy operation,
low maintenance,
fast changeover.
Technical parameters
| Model | Granule 320 | Powder 320 | Granule 420 | Powder 420 |
|---|---|---|---|---|
| Voltage | 220v | 220v | 220v | 220v |
| Motor power | 960w | 1150w | 1800w | 2000w |
| Heating power | 1kw | 1kw | 1kw | 1kw |
| Weight range | 5-250g | 10-500g | 50-1000g | 30-1000g |
| Vertical sealing length | 220mm | 220mm | 300mm | 3000mm |
| Film width | 60-320mm | 60-320mm | 100-450mm | 100-450mm |
| Film thickness | 0.03-0.12mm | 0.03-0.12mm | 0.03-0.12mm | 0.03-0.12mm |
| Max film roll diameter | 300mm | 350mm | 350mm | 350mm |
| Sealing style | pillow/three-side | pillow/three-side | pillow | pillow/three-side |
| Structure | electric | electric | electric | electric |
| Air consumption | 0.3-0.7m³/h | 0.3-0.7m³/h | 0.3-0.7m³/h | 0.3-0.7m³/h |
| Packing speed | 15-50bags/min | 15-50bags/min | 15-50bags/min | 15-50bags/min |
| Weight accuracy | ±2-3g | ±2-3g | ±5g | ±5g |
| Dimension | 1100*850*170cm | 1100*850*170cm | 130*95*205cm | 130*95*205cm |
| Weight | 300kg | 280kg | 400kg | 380kg |
| Packing size | 108*77*195cm | 108*77*190cm | 135*98*215cm | 135*98*215cm |
| Optional configuration | photoelectric, ribbon printing, count cut off | photoelectric, ribbon printing, count cut off | photoelectric, ribbon printing, count cut off | photoelectric, ribbon printing, count cut off |

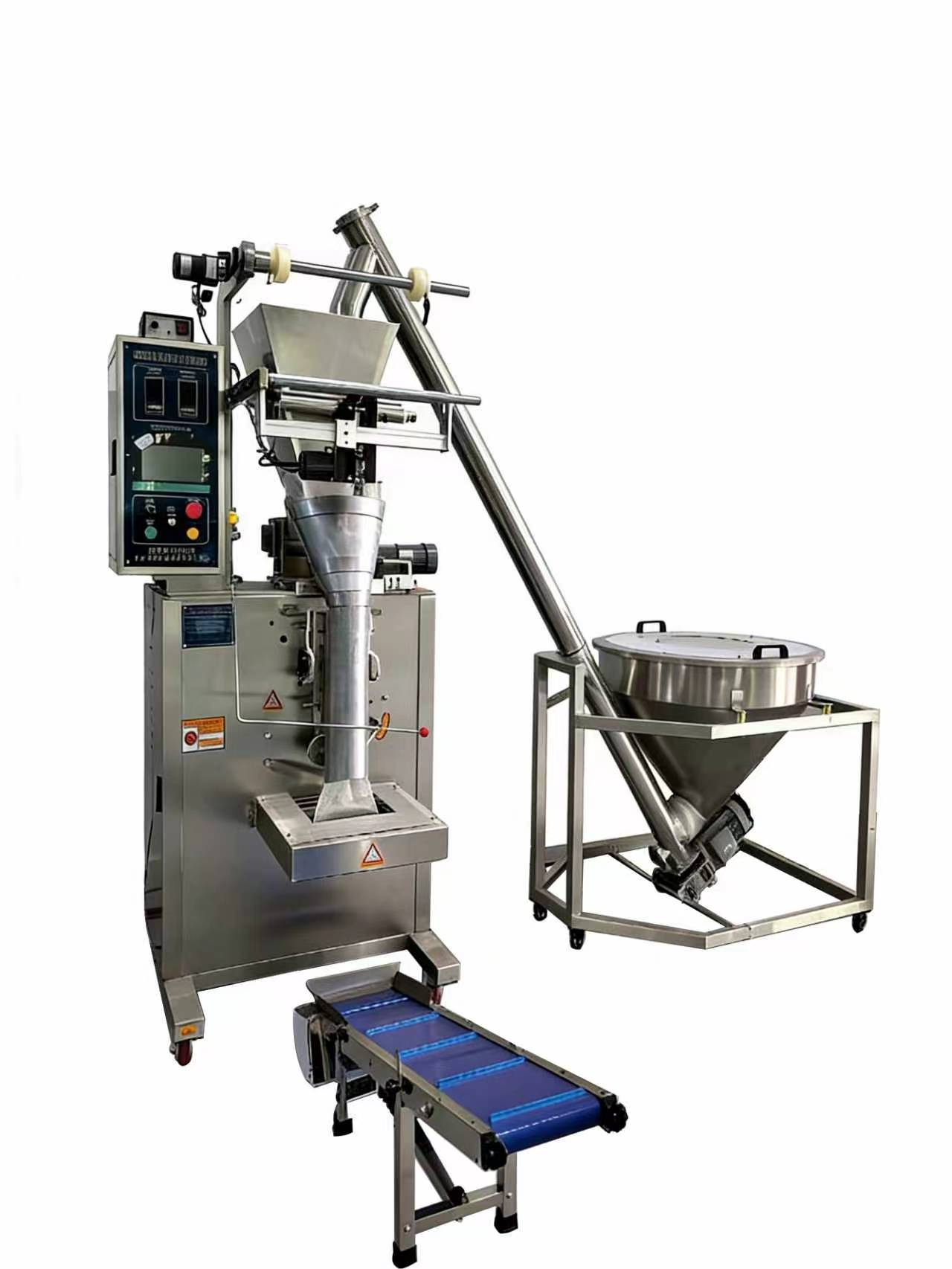

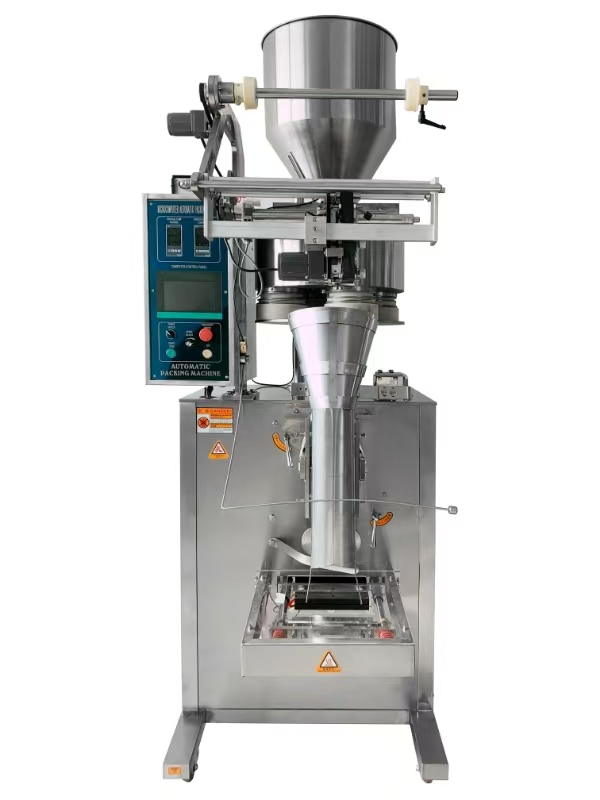

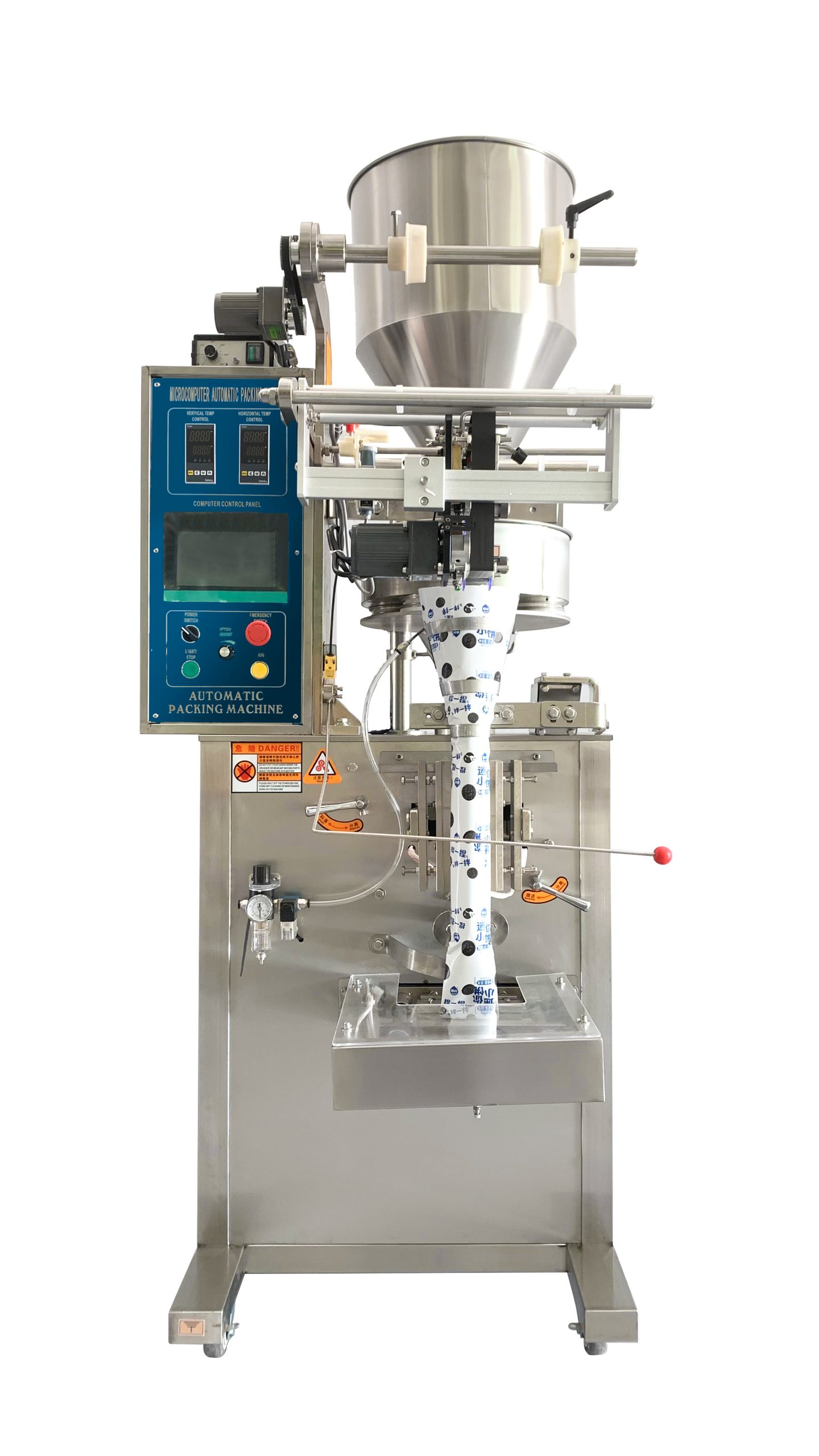

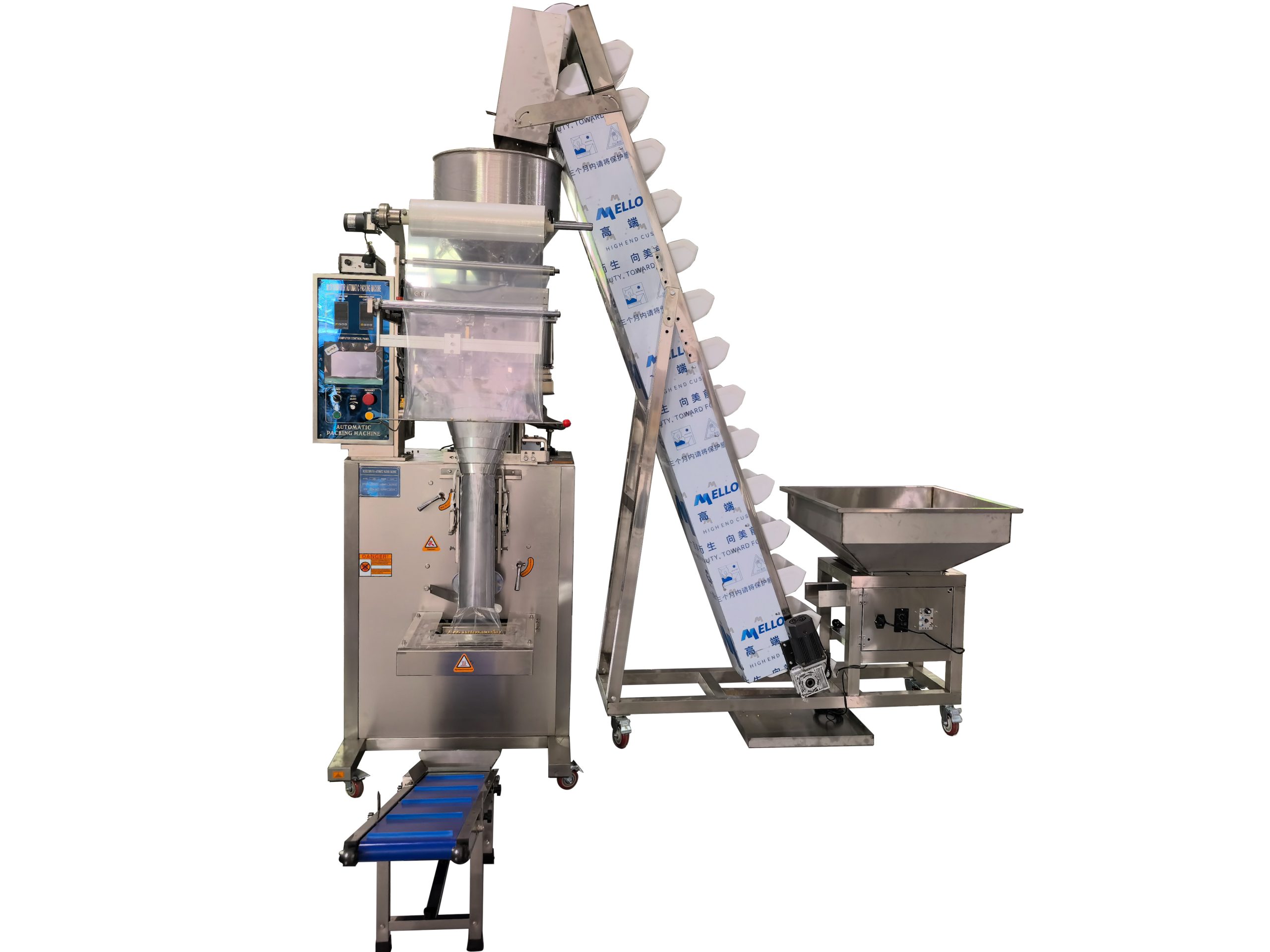

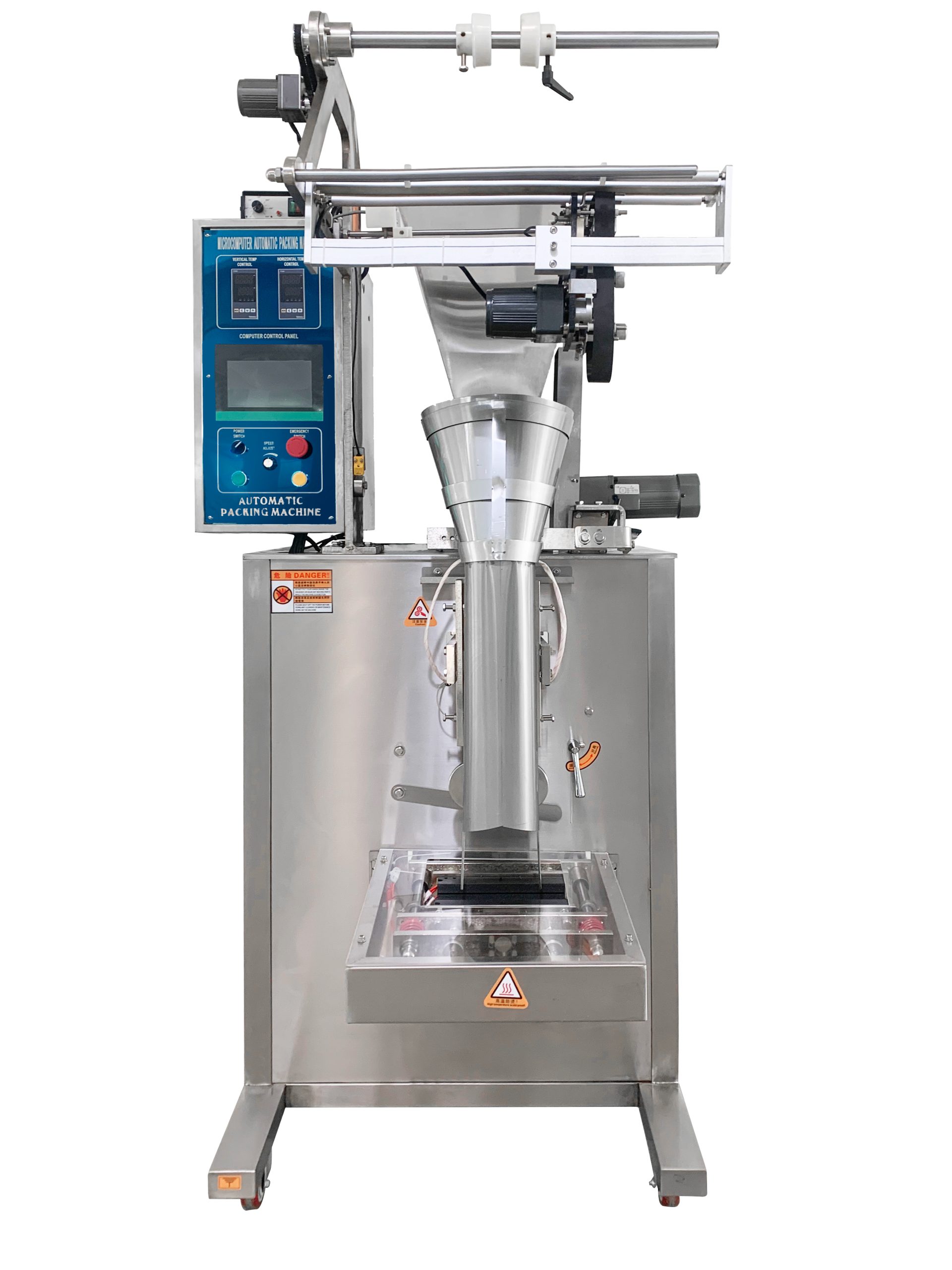

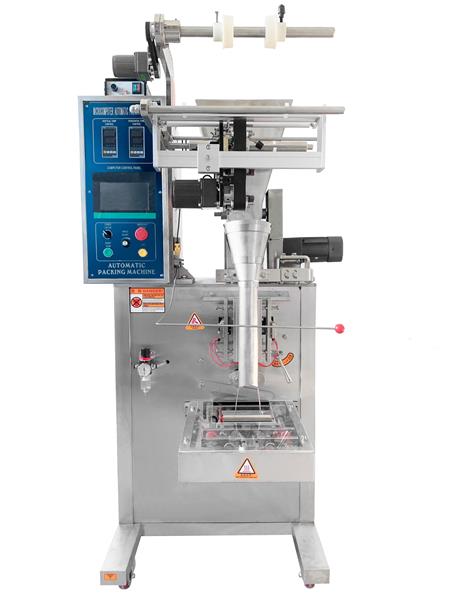

Detailed Photos
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, water bottle filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
