This series of filling machine is the company with reference to foreignadvancedfilling machine technology to transform andinnovate theproduct,itsstructure is moresimple and reasonable, high precision,the operation is more simple.Applicable to medicine, cosmetic, foodpesticide and special industries, is the high viscosityfluid, paste theidealequipment for filling.
Reasonable design, small size, easy to operate,there are filling volume adjustment handle, filing speed can be adjusted,filling high precision. Filling the valve head with anti-drip, anti-drawingand lifting filling device.
This series of filling machine is divided intosingle head,double head and explosion-proof models.
Technical parameter

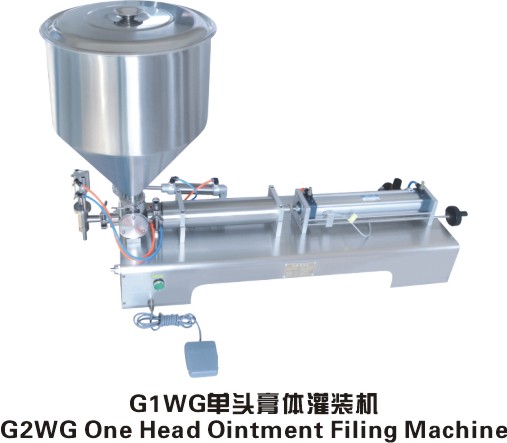

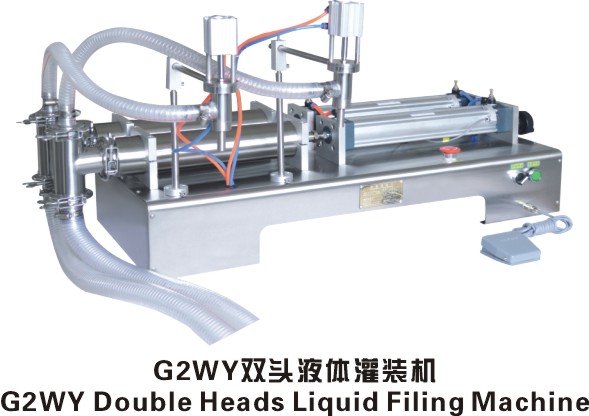

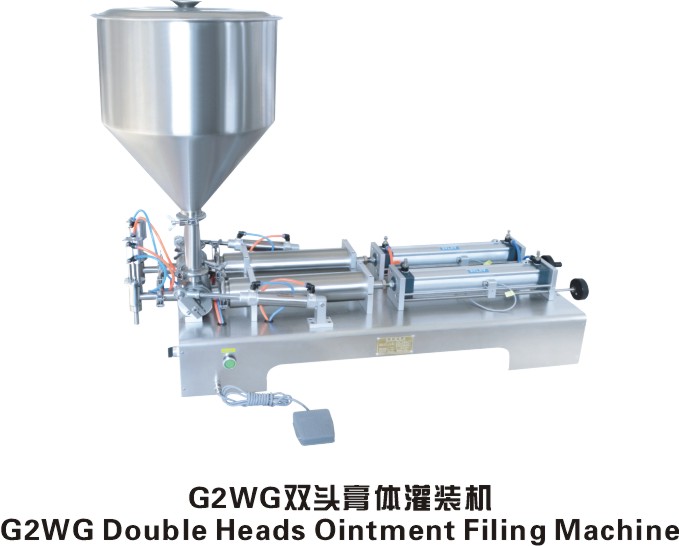

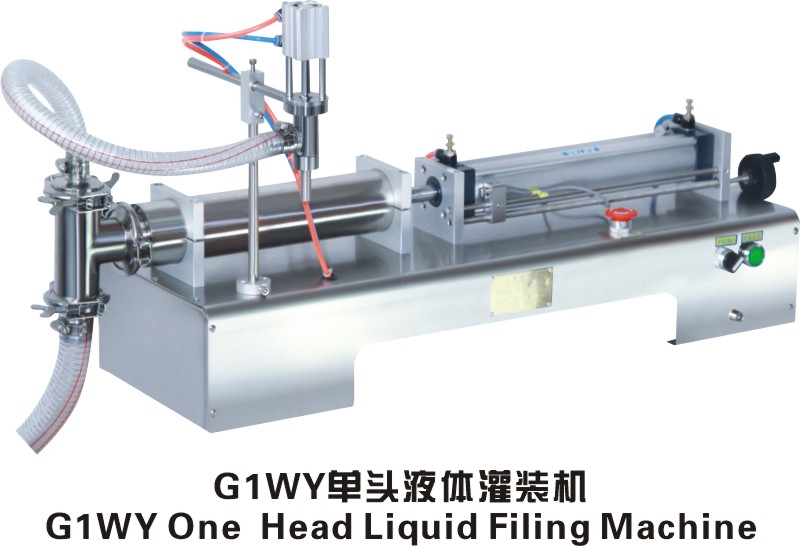

Horizontal Pneumatic Filling Machine
| Model | G1WY | G2WY | G1WG | G2WG |
|---|---|---|---|---|
| Power supply | AC220/110V 50/60Hz | |||
| Power | 20W | 50W | 20W | 50W |
| Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Filling speed | 5-25 blts/min | 10-50 blts/min | 5-25 blts/min | 10-50 blts/min |
| Filling accuracy | ±1% | ±1% | ±1% | ±1% |
| Optional models | 10-100ml / 30-300ml / 50-500ml / 100-1000ml / 500-3000ml / 1000-5000ml | |||

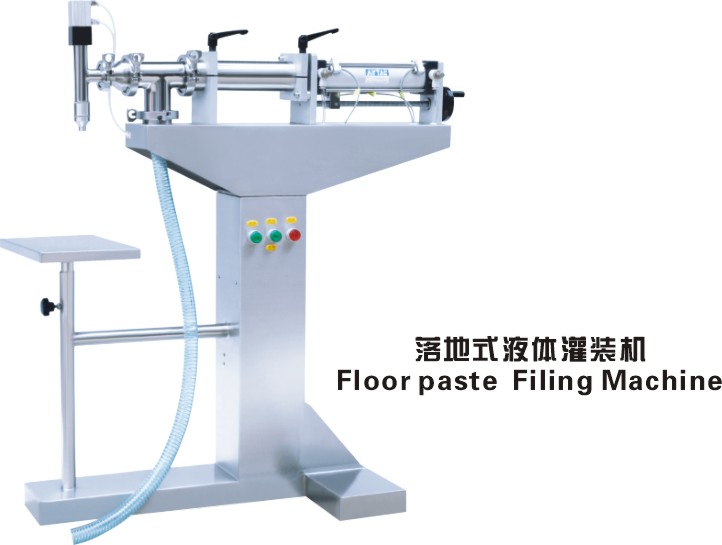

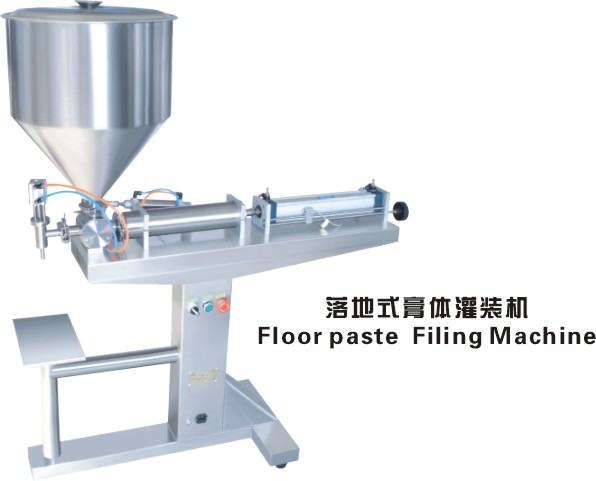

Floor-Standing Filling Machine
| Model | G1WY/G2WY (Floor-standing) | G1WG/G2WG (Floor-standing) |
|---|---|---|
| Power supply | AC220/110V 50/60Hz | AC220/110V 50/60Hz |
| Power | 50W | 50W |
| Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa |
| Filling speed | 10-50 blts/min | 10-50 blts/min |
| Filling accuracy | ±1% | ±1% |
| Optional models | 10-100ml / 20-300ml / 50-500ml / 100-1000ml / 500-3000ml / 1000-5000ml | |
Other Models
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, Filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
