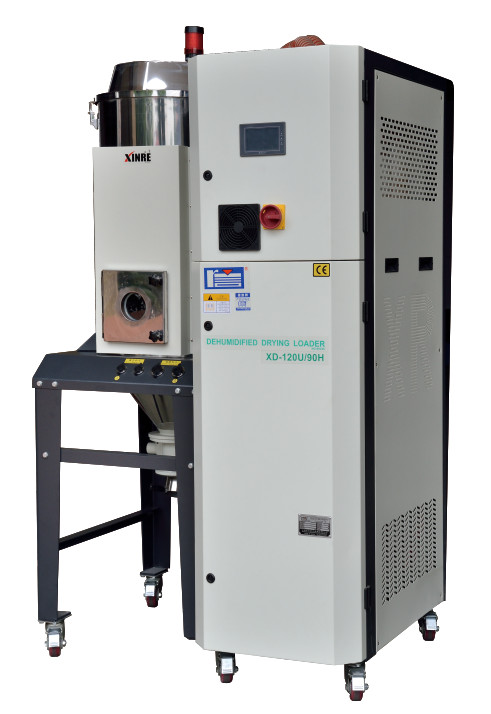

XD dehunmidifying,drying and feeding unit equipped honeycomb dehumidifier.
The moistureproof drying material tube adopt bottom blowing design with circling air exhausting device,prevent heat energy emitting,keep temperature, improve drying effiency.
The dew-point monitor indicator for customer selection, which can monitor the dew-point.
Features
Compact in size for easy moving and the machine can be replace easily.
Airtight loop feeding system, prevent thedried raw material to be re-moisture bycontact external air.
With built-in restrictive valve, guarantee no remained material in pipe.

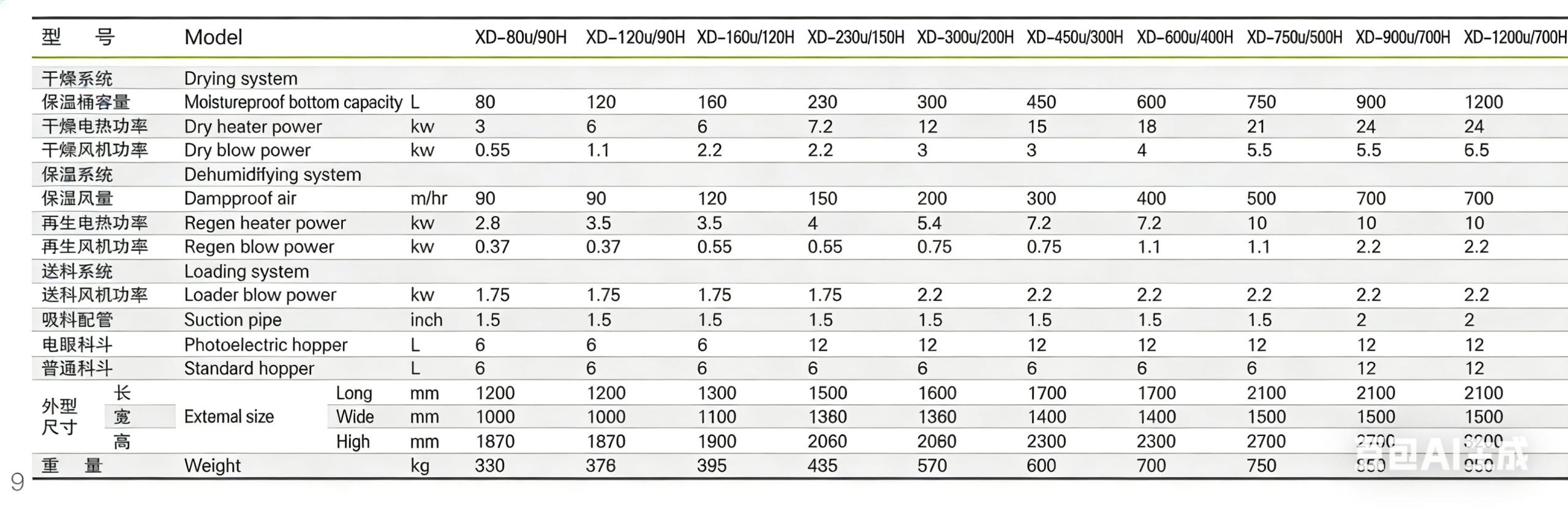

Technical Parameter
| Model / Parameter | Unit | XD-80u/90H | XD-120u/90H | XD-160u/120H | XD-230u/150H | XD-300u/200H | XD-450u/300H | XD-600u/400H | XD-750u/500H | XD-900u/700H | XD-1200u/700H | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Drying system | ||||||||||||
| Moistureproof bottom capacity | L | 80 | 120 | 160 | 230 | 300 | 450 | 600 | 750 | 900 | 1200 | |
| Dry heater power | kw | 3 | 6 | 6 | 7.2 | 12 | 15 | 18 | 21 | 24 | 24 | |
| Dry blow power | kw | 0.55 | 1.1 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 | 5.5 | 6.5 | |
| Dehumidifying system | ||||||||||||
| Dampproof air | m/hr | 90 | 90 | 120 | 150 | 200 | 300 | 400 | 500 | 700 | 700 | |
| Regen heater power | kw | 2.8 | 3.5 | 3.5 | 4 | 5.4 | 7.2 | 7.2 | 10 | 10 | 10 | |
| Regen blow power | kw | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 | 2.2 | |
| Loading system | ||||||||||||
| Loader blow power | kw | 1.75 | 1.75 | 1.75 | 1.75 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | |
| Suction pipe | inch | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | |
| Photoelectric hopper | L | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Standard hopper | L | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 12 | 12 | |
| External size | Long | mm | 1200 | 1200 | 1300 | 1500 | 1600 | 1700 | 1700 | 2100 | 2100 | 2100 |
| Wide | mm | 1000 | 1000 | 1100 | 1380 | 1360 | 1400 | 1400 | 1500 | 1500 | 1500 | |
| High | mm | 1870 | 1870 | 1900 | 2060 | 2060 | 2300 | 2300 | 2700 | 2700 | 3200 | |
| Weight | kg | 330 | 376 | 395 | 435 | 570 | 600 | 700 | 750 | 850 | 950 | |
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line.
Our exporting product includes: Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, water bottle filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
