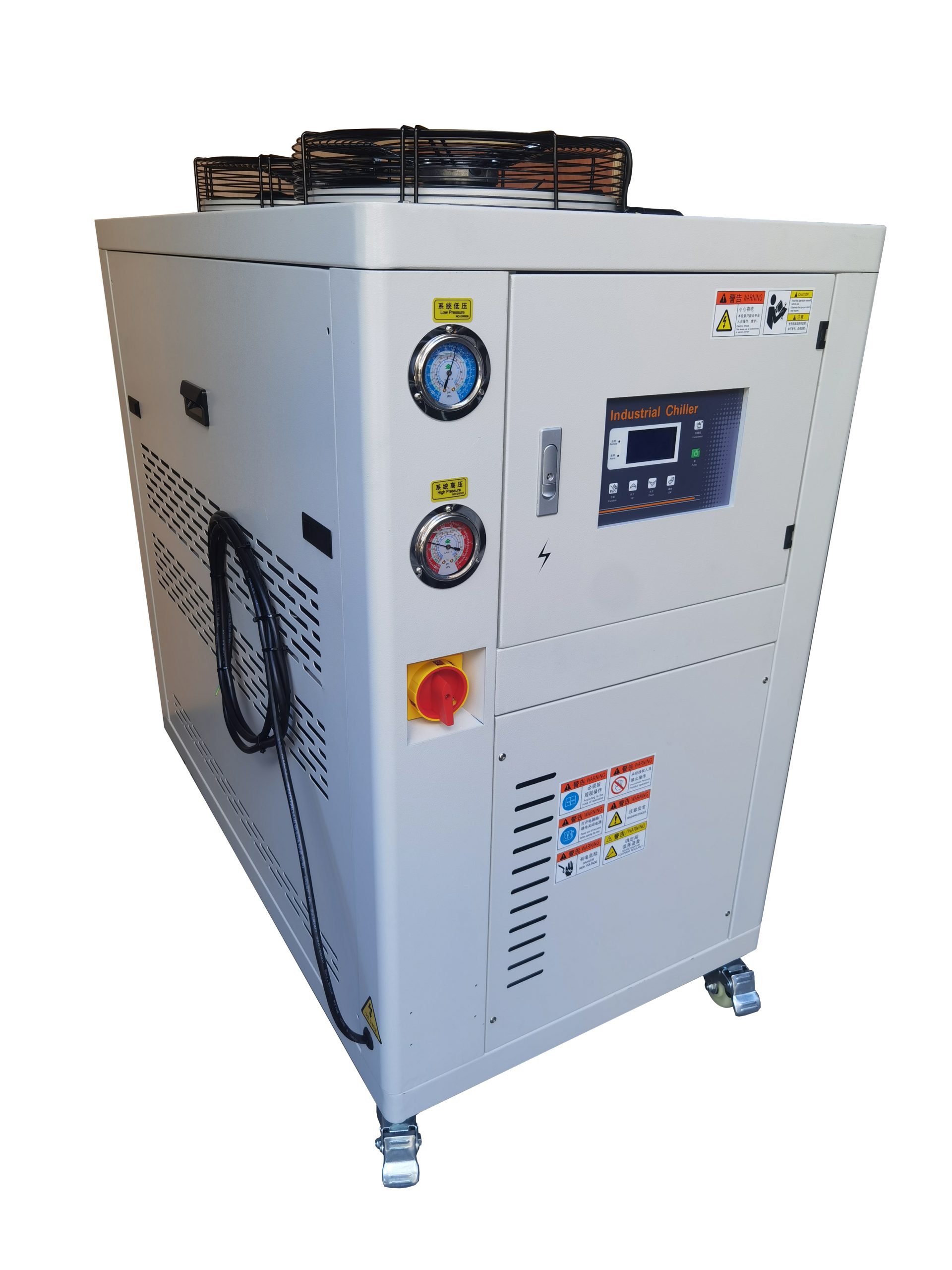

Application & Features
- Warm-keeping design for all piping to avoid partial convection. Cooling temperature range 5-35C
- Stainless steel plate type evaporater with very good heat exchange performance especially for high ambient temperature condition.
- Tube-fin double condensers with excellent heat transfer and rapid cooling.
- Stainless steel warm-keeping water tank.
- R22 refrigerant to be used for efficient cooling.
- R407 environment-friendly refrigerant is optional to use.
- Phase sequence protection for control circuit,refrigeration loop controlled by high and low pressure switch.
- Suitable for machine cooling in industries of plastics,electroplating, foodstuff,electrinic products, bleaching and dyeing,ultrosonics.
- Standard allocation with coil pipes evaporator,higher cooling effiency,easy to clean

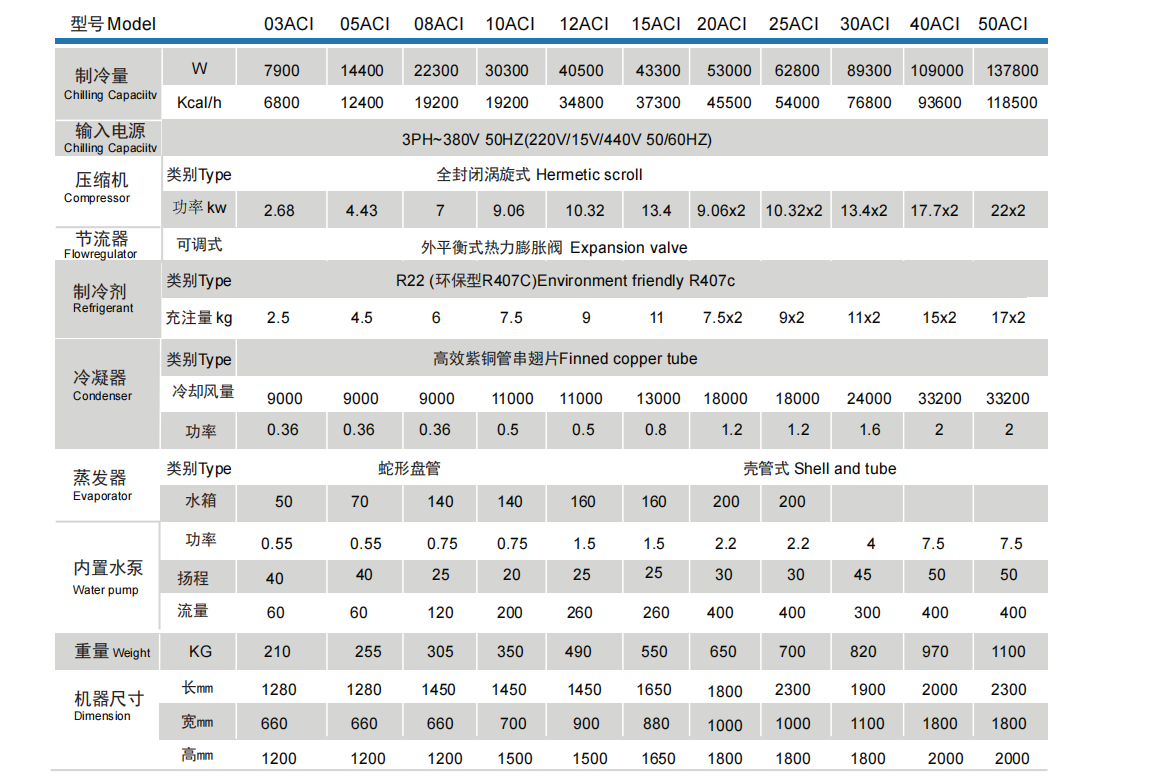

Technical Parameter
| Model | 03ACI | 05ACI | 08ACI | 10ACI | 12ACI | 15ACI | 20ACI | 25ACI | 30ACI | 40ACI | 50ACI | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Capacity | W | 7900 | 14400 | 22300 | 30300 | 40500 | 43300 | 53000 | 62800 | 89300 | 109000 | 137800 |
| Kcal/h | 6800 | 12400 | 19200 | 19200 | 34800 | 37300 | 45500 | 54000 | 76800 | 93600 | 118500 | |
| Power Supply | 3PH~380V 50HZ (220V/15V/440V 50/60HZ) | |||||||||||
| Compressor | Type | Hermetic Scroll | ||||||||||
| Power (kw) | 2.68 | 4.43 | 7 | 9.06 | 10.32 | 13.4 | 9.06×2 | 10.32×2 | 13.4×2 | 17.7×2 | 22×2 | |
| Throttle Valve | Adjustable | External Balanced Thermostatic Expansion Valve | ||||||||||
| Refrigerant | Type | R22 (Eco-friendly R407C) | ||||||||||
| Charge (kg) | 2.5 | 4.5 | 6 | 7.5 | 9 | 11 | 7.5×2 | 9×2 | 11×2 | 15×2 | 17×2 | |
| Condenser | Type | High-efficiency Finned Copper Tube | ||||||||||
| Cooling Air Volume | 9000 | 9000 | 9000 | 11000 | 11000 | 13000 | 18000 | 18000 | 24000 | 33200 | 33200 | |
| Power | 0.36 | 0.36 | 0.36 | 0.5 | 0.5 | 0.8 | 1.2 | 1.2 | 1.6 | 2 | 2 | |
| Evaporator | Type | Coiled Tube | Shell and Tube | |||||||||
| Water Tank (L) | 50 | 70 | 140 | 140 | 160 | 160 | 200 | 200 | – | – | – | |
| Built-in Water Pump | Power | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 7.5 | 7.5 |
| Lift (m) | 40 | 40 | 25 | 20 | 25 | 25 | 30 | 30 | 45 | 50 | 50 | |
| Flow Rate | 60 | 60 | 120 | 200 | 260 | 260 | 400 | 400 | 300 | 400 | 400 | |
| Net Weight | KG | 210 | 255 | 305 | 350 | 490 | 550 | 650 | 700 | 820 | 970 | 1100 |
| Dimensions | Length (mm) | 1280 | 1280 | 1450 | 1450 | 1450 | 1650 | 1800 | 2300 | 1900 | 2000 | 2300 |
| Width (mm) | 660 | 660 | 660 | 700 | 900 | 880 | 1000 | 1000 | 1100 | 1800 | 1800 | |
| Height (mm) | 1200 | 1200 | 1200 | 1500 | 1500 | 1650 | 1800 | 1800 | 1800 | 2000 | 2000 | |
