Features
1.Automatic circular rolling labeling machine is a round botle labeling machine, suitable for pharmaceutical, food, cosmetic and other industries round bottle labeling, paste all week labeling and semi-circularlabeling.
2. Optional automatic transfer botle management machine, can be directly connected to the front-end production line, automatic botle
into the labeling machine.increase efficiency.
3. Optional Ribbon coding labeling machine can be printed on-line production date and batch number, reduce the bottle packaging
process,improve production efficiency.
Technical parameter
Automatic Vertical Round Bottle Position Labeling Machine
| Model | LP-260-A | LP-260-B |
|---|---|---|
| Machine Size (L×W×H) | 2000×1000×1400mm | 750×750×1100mm |
| Labeling Speed | 25-50 pcs/min (adjustable) | 25-50 pcs/min (adjustable) |
| Suitable Bottle Diameter | φ30-100mm | φ30-100mm |
| Label Height | 15-150mm | 15-150mm |
| Label Length | 15-200mm | 15-200mm |
| Labeling Accuracy | ±1% | ±1% |
| Inner Diameter of Label Roll | 76mm | 76mm |
| Outer Diameter of Label Roll | 350mm | 350mm |
| Voltage | 110V/220V 50/60Hz 1.5KW | 110V/220V 50/60Hz 1.5KW |
| Net Weight | 220kg | 100kg |
| Package Size (L×W×H) | 2150×1050×1600mm | 800×800×1300mm |
Automatic Round Bottle Labeling Machine
| Model | LP-200 |
|---|---|
| Voltage | 220V/50Hz |
| Power | 2KW |
| Labeling Speed | 10-60 PCS/min |
| Labeling Accuracy | ±1mm |
| Label Size | L: 30-150mm, W: 30-150mm |
| Max. Label Roll Outer Diameter | Φ260mm |
| Min. Label Roll Inner Diameter | Φ75mm |
| Product Size | H: 100-300mm, W: 50-150mm |
| Max. Label Width & Length | W: 150mm, L: 230mm |
| Machine Size (L×W×H) | 250×160×1600mm |
| Net Weight | 280kg |

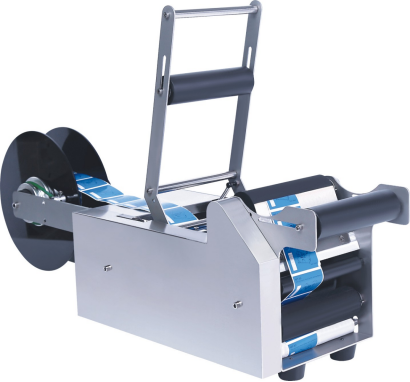

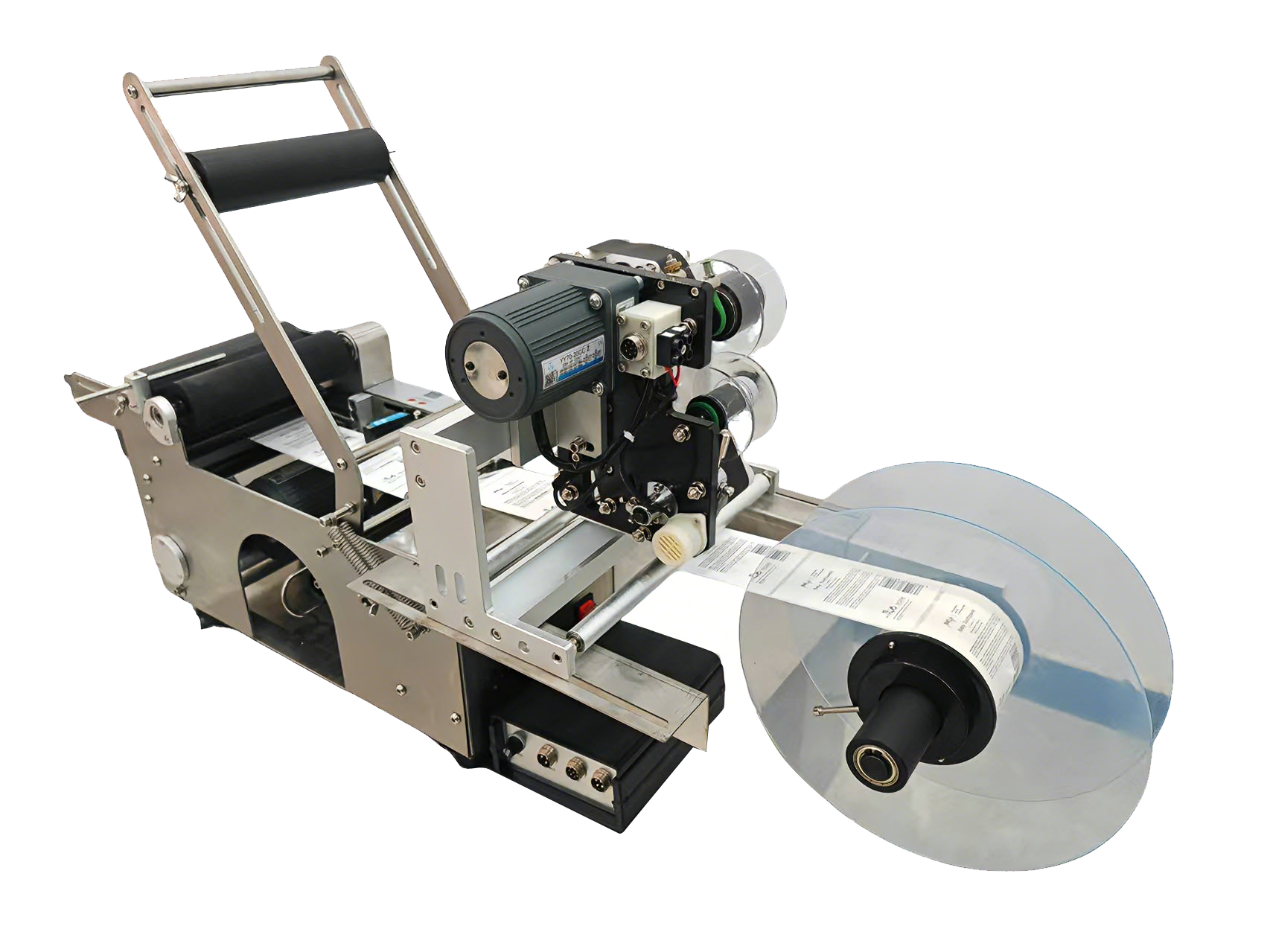

Round Bottle Labeling Machine
| Model | LP-50 | LP-50D |
|---|---|---|
| Voltage | 220V/50Hz | 220V/50Hz |
| Power | 120W | 120W |
| Labeling Speed | 25-50 PCS/min | 25-50 PCS/min |
| Labeling Accuracy | ±1mm | ±1mm |
| Label Roll Inner Diameter | ≥ Φ75mm | ≥ Φ75mm |
| Max. Label Roll Outer Diameter | ≤ Φ250mm | ≤ Φ250mm |
| Suitable Product Diameter | Φ20-120mm | Φ20-120mm |
| Max. Label Width & Length | W: 150mm, L: 230mm | W: 150mm, L: 230mm |
| Printer Configuration | Without | With |
| Machine Size (L×W×H) | 63×33×37cm | 63×37×52cm |
| Net Weight | 24kg | 33kg |

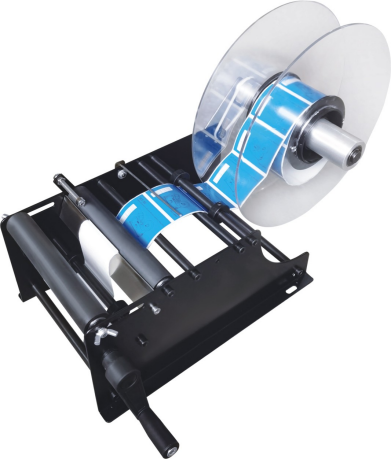

Hand Labeling Machine
| Model | Hand Labeling Machine |
|---|---|
| Voltage | None (Manual Operation) |
| Power | None (Manual Operation) |
| Labeling Speed | 0-15 PCS/min |
| Labeling Accuracy | – |
| Label Roll Inner Diameter | 75mm |
| Max. Label Roll Outer Diameter | 200mm |
| Suitable Product Diameter | 20-120mm |
| Max. Label Width | 140mm |
| Printer Configuration | None |
| Machine Size (L×W×H) | 43.5×26×25.5cm |
| Net Weight | 5.6kg |
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, Filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
