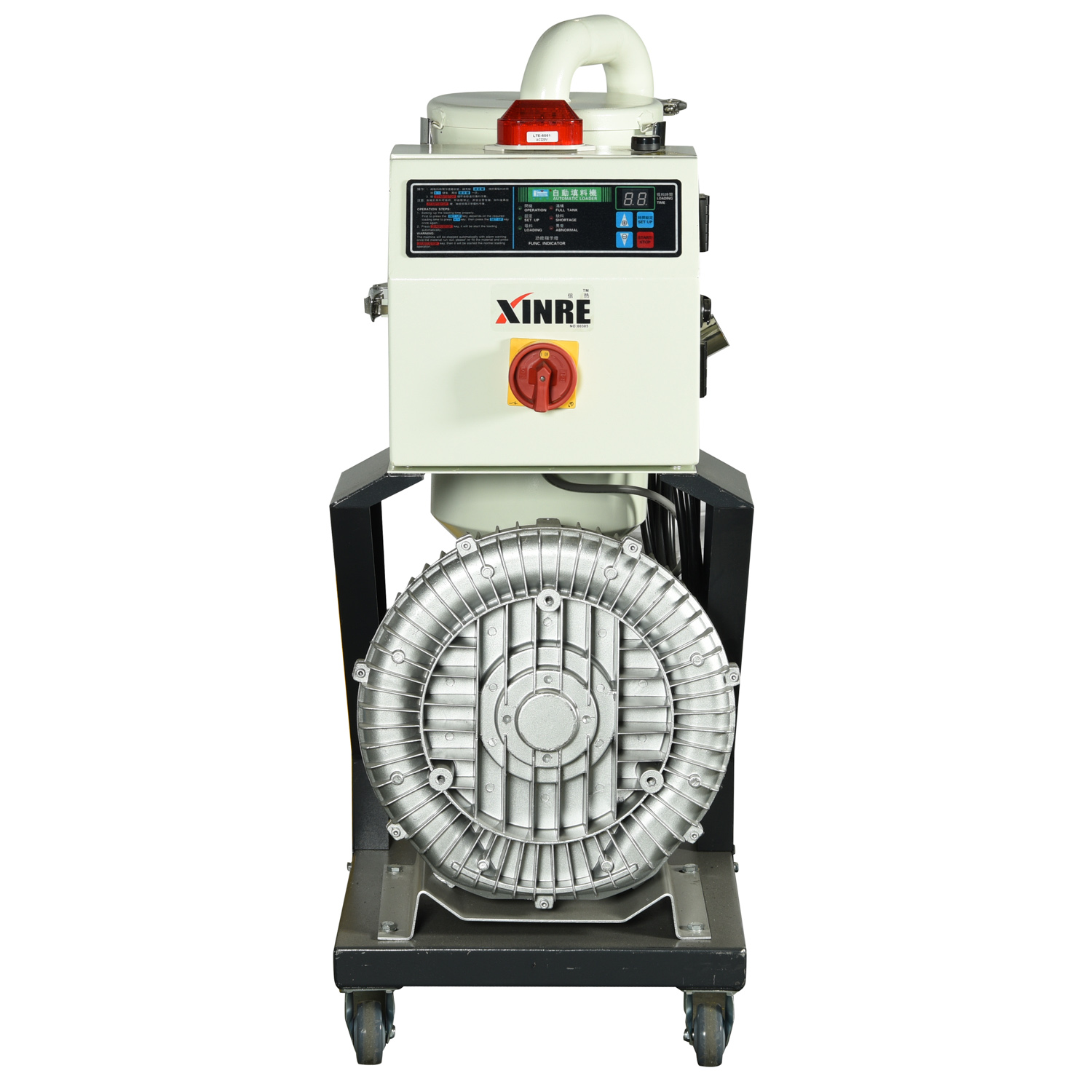

The main engine and the material hopper are designed separately, and thus it is safe, easy and convenient to operate. The whole operation is controlled by MicroTrip computer. Equipped with an independent filter, which is very convenient to clean up dust. The equipped muffler reduces the noise in operation. XTL-9ooGN-2 controlling two suction hoppers by one single controller not only can avoid taking space but also manage conveniently. The air revolving dust arrester reduces the cleaning times of the filter, is suitable for the ground material.
Features
- Stainless steel material hopper is light in weight, durable and very convenient for cleaning the device.
- The control box, being designed separately, is easy to be well maintain.
- Auto-buzzer will give alarm while lacking material.
- Auto-protective device protects motor against overloading.
- The bunker with an electronic eye can be installed on the charging inlet of the molding machine directly.
- Can select a two-material proportional valve, used for new material mixed grinded material using or instant receiving of ground material.

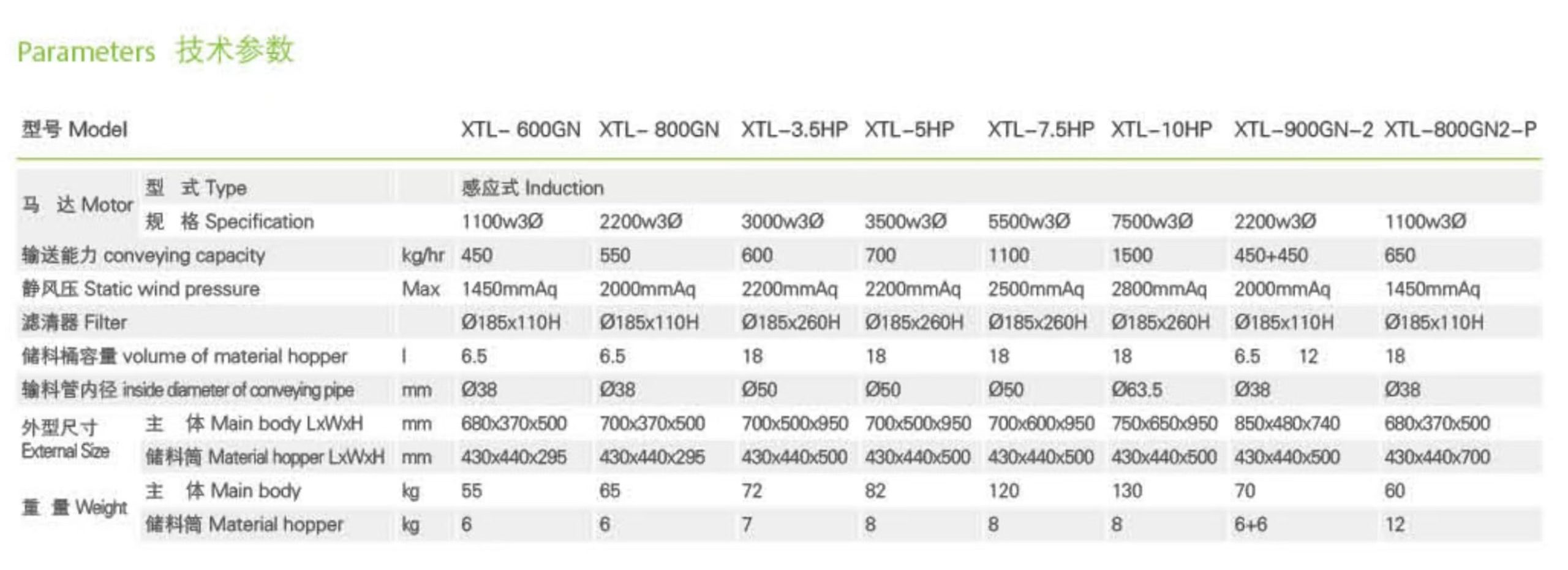

Technical Parameter
| Model | XTL-600GN | XTL-800GN | XTL-3.5HP | XTL-5HP | XTL-7.5HP | XTL-10HP | XTL-900GN-2 | XTL-800GN2-P | |
|---|---|---|---|---|---|---|---|---|---|
| Motor | Type | Induction | |||||||
| Specification | 1100w 3Ø | 2200w 3Ø | 3000w 3Ø | 3500w 3Ø | 5500w 3Ø | 7500w 3Ø | 2200w 3Ø | 1100w 3Ø | |
| Conveying capacity (kg/hr) | 450 | 550 | 600 | 700 | 1100 | 1500 | 450+450 | 650 | |
| Static wind pressure (Max, mmAq) | 1450 | 2000 | 2200 | 2200 | 2500 | 2800 | 2000 | 1450 | |
| Filter | Ø185×110H | Ø185×110H | Ø185×260H | Ø185×260H | Ø185×260H | Ø185×260H | Ø185×110H | Ø185×110H | |
| Volume of material hopper (l) | 6.5 | 6.5 | 18 | 18 | 18 | 18 | 6.5 / 12 | 18 | |
| Inside dameter of conveying pipe(mm) | Ø38 | Ø38 | Ø50 | Ø50 | Ø50 | Ø63.5 | Ø38 | Ø38 | |
| External Size (mm, L×W×H) | Main body | 680×370×500 | 700×370×500 | 700×500×950 | 700×500×950 | 700×600×950 | 750×650×950 | 850×480×740 | 680×370×500 |
| Material hopper | 430×440×295 | 430×440×295 | 430×440×500 | 430×440×500 | 430×440×500 | 430×440×500 | 430×440×500 | 430×440×700 | |
| Weight (kg) | Main body | 55 | 65 | 72 | 82 | 120 | 130 | 70 | 60 |
| Material hopper | 6 | 6 | 7 | 8 | 8 | 8 | 6+6 | 12 | |
