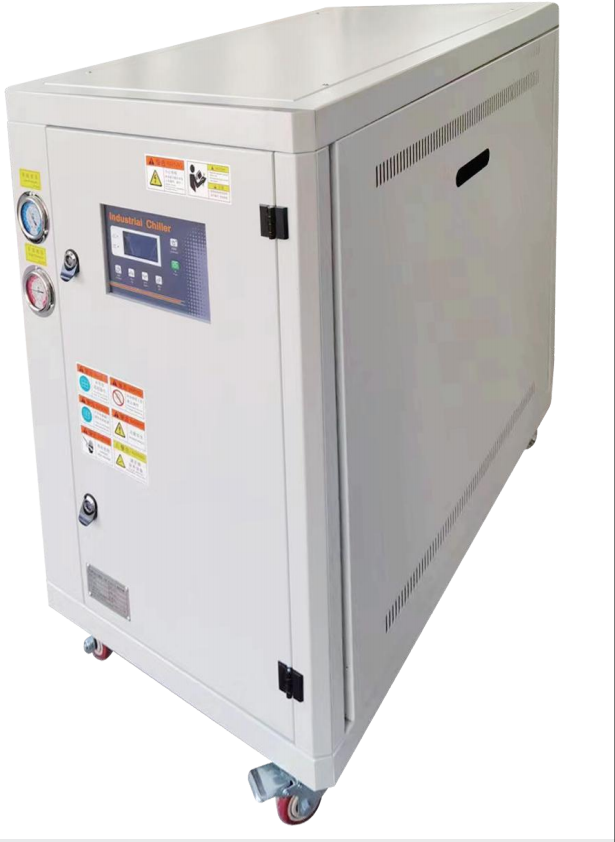

Application & Features
- Warm-keeping design for all piping to avoid partial convection. Cooling temperature range 5-35C
- Stainless steel plate type evaporater with very good heat exchange performance especially for high ambient temperature condition.
- Tube-fin double condensers with excellent heat transfer and rapid cooling. Stainless steel warm-keeping water tank.
- R22 refrigerant to be used for efficient cooling.
- R407 environment-friendly refrigerant is optional to use.
- Phase sequence protection for control circuit,refrigeration loop controlled by high and low pressure switch.
- Suitable for machine cooling in industries of plastics,electroplating, foodstuff,electrinic products,bleaching and dyeing,ultrosonics.
- Standard allocation with coil pipes evaporator,higher cooling effiency,easy to clean

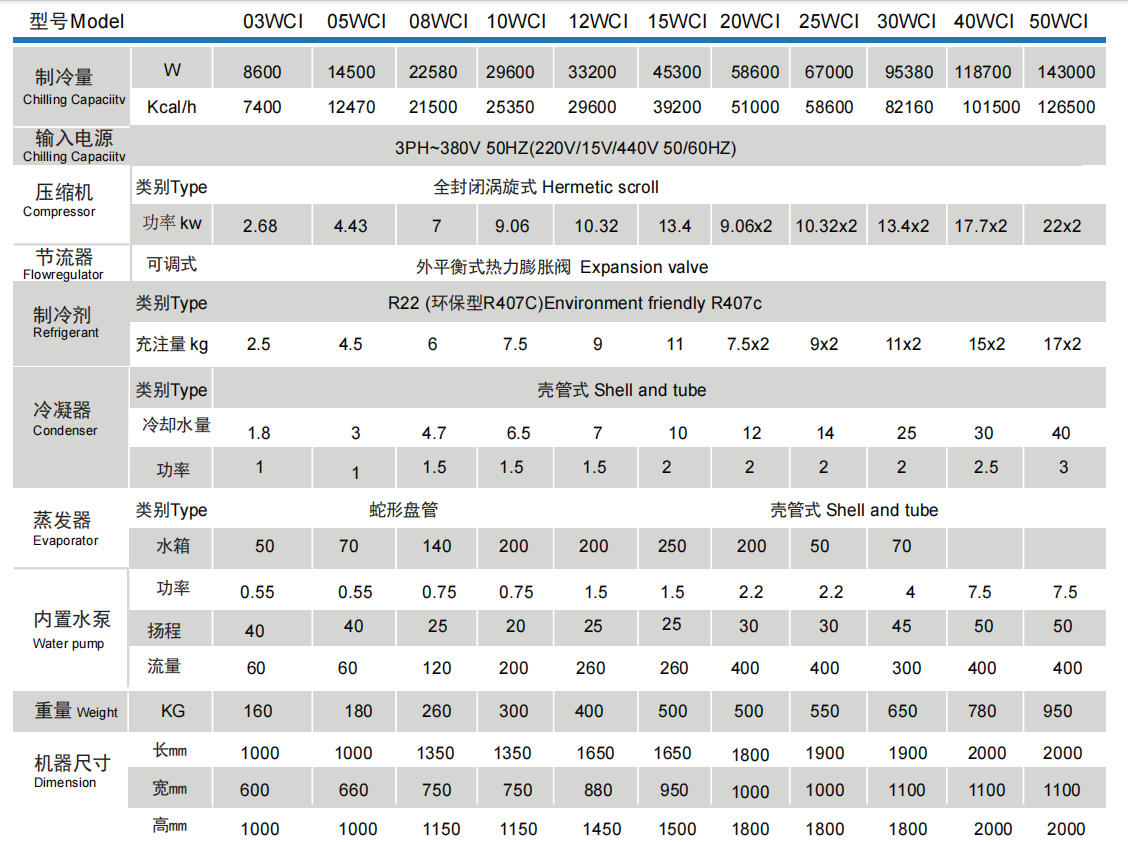

Technical Parameter
| Item | Unit | 03WCI | 05WCI | 08WCI | 10WCI | 12WCI | 15WCI | 20WCI | 25WCI | 30WCI | 40WCI | 50WCI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Chilling Capacity | W | 8600 | 14500 | 22580 | 29600 | 33200 | 45300 | 58600 | 67000 | 95380 | 118700 | 143000 |
| Kcal/h | 7400 | 12470 | 21500 | 25350 | 29600 | 39200 | 51000 | 58600 | 82160 | 101500 | 126500 | |
| Power Supply | – | 3PH~380V 50HZ (220V/115V/440V 50/60HZ) | ||||||||||
| Compressor | Type | Hermetic Scroll | ||||||||||
| kW | 2.68 | 4.43 | 7 | 9.06 | 10.32 | 13.4 | 9.06×2 | 10.32×2 | 13.4×2 | 17.7×2 | 22×2 | |
| Flow Regulator | – | External Balanced Thermostatic Expansion Valve | ||||||||||
| Refrigerant | Type | R22 (Environment friendly R407c) | ||||||||||
| kg | 2.5 | 4.5 | 6 | 7.5 | 9 | 11 | 7.5×2 | 9×2 | 11×2 | 15×2 | 17×2 | |
| Condenser | Type | Shell and Tube | ||||||||||
| Water Flow | 1.8 | 3 | 4.7 | 6.5 | 7 | 10 | 12 | 14 | 25 | 30 | 40 | |
| Power | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 2.5 | 3 | |
| Evaporator | Type | Coil Type | Shell and Tube | |||||||||
| Tank | 50 | 70 | 140 | 200 | 200 | 250 | 200 | 50 | 70 | – | – | |
| Water Pump | kW | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 7.5 | 7.5 |
| Head | 40 | 40 | 25 | 20 | 25 | 25 | 30 | 30 | 45 | 50 | 50 | |
| Flow | 60 | 60 | 120 | 200 | 260 | 260 | 400 | 400 | 300 | 400 | 400 | |
| Weight | KG | 160 | 180 | 260 | 300 | 400 | 500 | 500 | 550 | 650 | 780 | 950 |
| Dimension | L (mm) | 1000 | 1000 | 1350 | 1350 | 1650 | 1650 | 1800 | 1900 | 1900 | 2000 | 2000 |
| W (mm) | 600 | 660 | 750 | 750 | 880 | 950 | 1000 | 1000 | 1100 | 1100 | 1100 | |
| H (mm) | 1000 | 1000 | 1150 | 1150 | 1450 | 1500 | 1800 | 1800 | 1800 | 2000 | 2000 | |
About us
We have more than 20 years knowledge and experience on PET Water/juice/carbonated drinks production line. Our exporting product includes: Injection molding machine, PET preform mould, plastic bottle blowing machine, Water treatment system, water bottle filling machine and Packaging machine etc.
Q: What is the warranty if we buy your machines?
A: We offer the high quality machines with 1 year guarantee start from the machine reach to your factory. Also your share the lifelong technical support.
Q: How about the spare parts?
A: We will send one year enough spare parts together with machines for your stock. During the warranty time, if some spare parts broke without human problem, we will send free for you.
Q: How to install my machines when it arrives? What is the cost?
A: We will send our engineer to your factory to install the machines and train your engineers how to operate and maintain the machines. Customer pay for visa, round-trip tickets, room and accommodation, also USD80/day/ person(engineer salary).
Q: How long time for installation?
A: According to the machine you order, usually we will send one or two engineer, it takes about 7to 20days.
Q: When can I get my machine after I paid?
A: Usually the production time is around 25-60 days. The exactly will be decided by which machine u order.
